README.md

OpenDTU-Database-Database

OpenDTU-Database

One year OpenDTU-Database

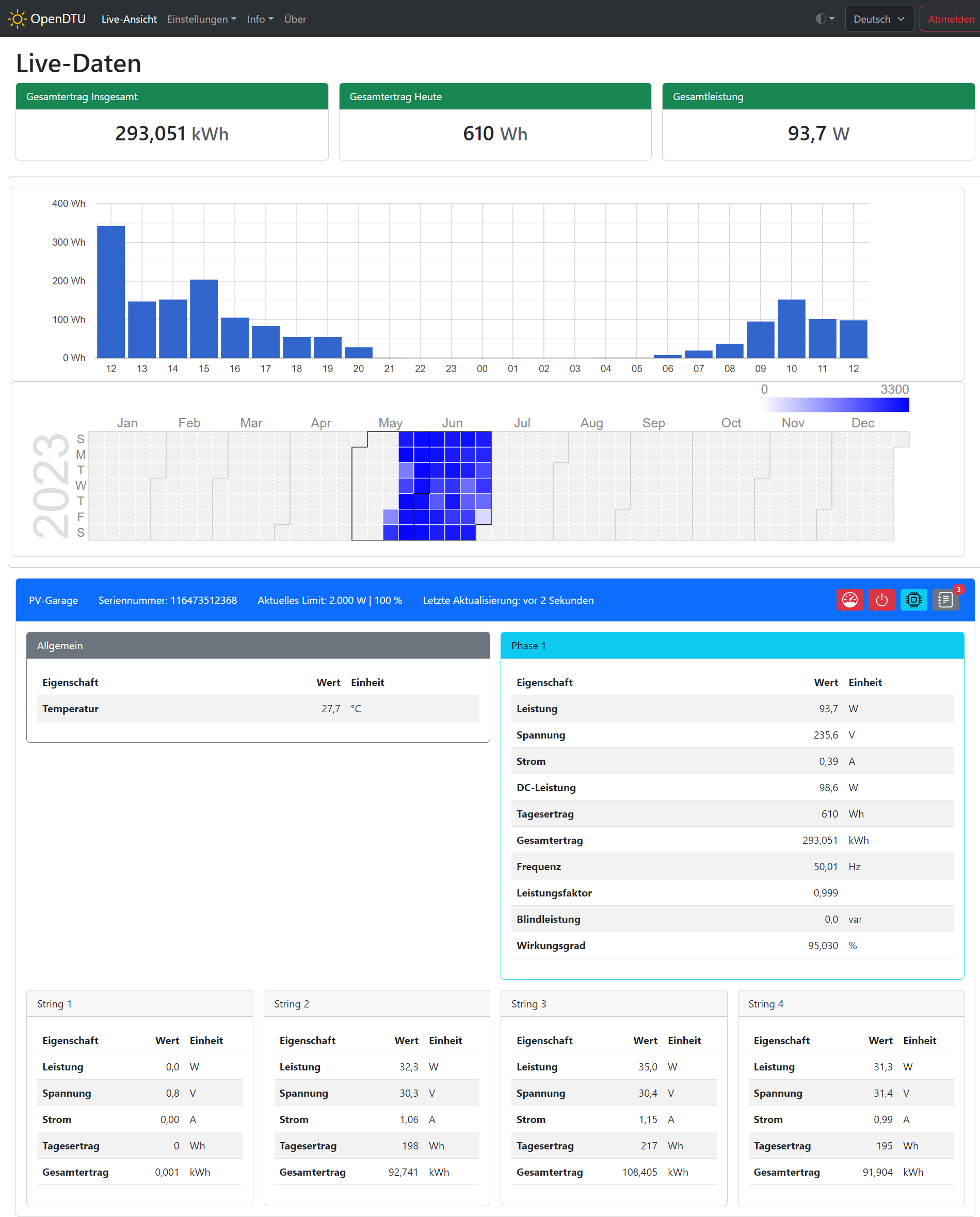

OpenDTU-Database adds an ESP32 LittleFS Database and two energy charts, a column chart of the last 25 hours and a full calendar chart.

There are 3 new APIs available, returning JSON strings:

API	returned values
/api/database	returns all recored data points from the database with total energy value
/api/databaseHour	returns the energy per hour for the last 25 hours
/api/databaseDay	returns the energy for each day

Each data point has the following format: [ year (00-99), month (1-12), day (1-31), hour (0-23), energy (Wh) ]

Example: [23,6,30,15,132.995605]

The 192KB LittleFS in OpenDTU can store around 6 years of data, because each data point needs only 8 bytes of memory.

Background

This project was started from this discussion (Mikrocontroller.net). It was the goal to replace the original Hoymiles DTU (Telemetry Gateway) with their cloud access. With a lot of reverse engineering the Hoymiles protocol was decrypted and analyzed.

Documentation

The documentation can be found here. Please feel free to support and create a PR in this repository to make the documentation even better.

Breaking changes

Generated using: git log --date=short --pretty=format:"* %h%x09%ad%x09%s" | grep BREAKING

* 1b637f08      2024-01-30      BREAKING CHANGE: Web API Endpoint /api/livedata/status and /api/prometheus/metrics
* e1564780      2024-01-30      BREAKING CHANGE: Web API Endpoint /api/livedata/status and /api/prometheus/metrics
* f0b5542c      2024-01-30      BREAKING CHANGE: Web API Endpoint /api/livedata/status and /api/prometheus/metrics
* c27ecc36      2024-01-29      BREAKING CHANGE: Web API Endpoint /api/livedata/status
* 71d1b3b       2023-11-07      BREAKING CHANGE: Home Assistant Auto Discovery to new naming scheme
* 04f62e0       2023-04-20      BREAKING CHANGE: Web API Endpoint /api/eventlog/status no nested serial object
* 59f43a8       2023-04-17      BREAKING CHANGE: Web API Endpoint /api/devinfo/status requires GET parameter inv=
* 318136d       2023-03-15      BREAKING CHANGE: Updated partition table: Make sure you have a configuration backup and completly reflash the device!
* 3b7aef6       2023-02-13      BREAKING CHANGE: Web API!
* d4c838a       2023-02-06      BREAKING CHANGE: Prometheus API!
* daf847e       2022-11-14      BREAKING CHANGE: Removed deprecated config parsing method
* 69b675b       2022-11-01      BREAKING CHANGE: Structure WebAPI /api/livedata/status changed
* 27ed4e3       2022-10-31      BREAKING: Change power factor from percent value to value between 0 and 1

Currently supported Inverters

A list of all currently supported inverters can be found here
